Category: Master Flash

Retrofit®

Written by novagiant on . Posted in Master Flash.

  • Use when over the top installation is not an option on metal roofs.
  • Available in EPDM or Silicone (for high temperature application, use silicone).
  • Includes cable clamp and snap rivets
Product No.Pipe SizeCtn. Qty.CompoundCtn Wt.
101RF1/2’’-4’’5Grey EPDM6
102RF-S1/2’’-4’’5Red Silicone6
201RF4’’-9-1/4’’5Grey EPDM8
202RF-S4’’-9-1/4’’5Red Silicone8
301RF9-1/4’’-16-1/4’’5Grey EPDM14
302RF-S9-1/4’’-16-1/4’’5Red Silicone14
Advanced Ozone Resistance tested to:EPDM
70 hour @ 500 pphm		SILICONE
70 hour @ 500 pphm
High Temperature Resistance tested to:Intermittent: +135°C (+275°F)
Continuous: +100°C (+212°F)		Intermittent: +260°C (+500°F)
Continuous: +225°C (+437°F)
Low Temperature Resistance tested to:-55°C (-67°F) -74°C (-100°F)
Tensile Strength minimum…10 MPa (1450 psi)5 MPa (700 psi)
Compression Set minimum…25%50%

– SWIPE LEFT TO SEE FULL TABLE –

Master Flash®, Residential Master Flash®, and Retrofit® are registered trademarks of Aztec Washer Company.

Electrical Mast Connection Master Flash®

Written by novagiant on . Posted in Master Flash.

Specifically designed for the Residential Roofing Industry

The Electrical Mast Connection Master Flash® is a one piece flashing closed with stainless steel grippers

Modification Made Simple

Easy to see pipe diameters make for painless on-site installation.

Weather Protection Made of E.P.D.M.

These flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light

Adaptable to Almost Any Roof Pitch

The built in 20° pitch allows adaptability to almost any roof pitch including 45°

ISO Quality, Price, & Availability / One Compound

Advanced Ozone Resistance tested to:EPDM
70 hour @ 500 pphm
High Temperature Resistance tested to:Intermittent: +135°C (+275°F)
Continuous: +100°C (+212°F)
Low Temperature Resistance tested to:-55°C (-67°)
Compression Set minimum…25%
Carton Weight17 pounds

Instructions

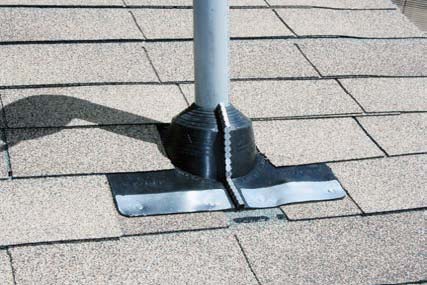

THE ELECTRICAL MAST CONNECTION MASTER FLASH® IS A ONE PIECE FLASHING CLOSED WITH STAINLESS STEEL GRIPPERS

  1. Measure for correct pipe size
  2. Apply shingles up to lower edge of pipe
  3. Cut (EMC) flashing opening to appropriate size for you pipe

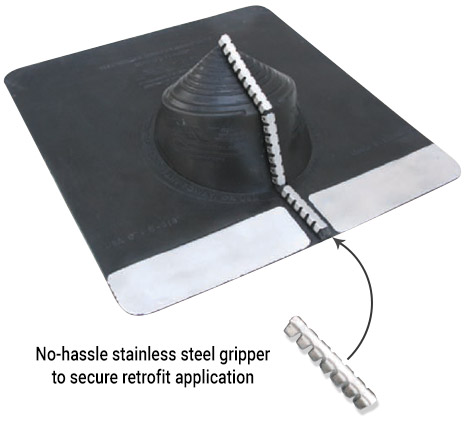

  4. Wrap (EMC) flashing around pipe and close by crimping on stainless steel grippers
  5. Apply sealant to the underside of (EMC)  base and secure base with roofing nails
  6. Apply sealant around the top of the (EMC) flashing where it meets the pipe, and along joiner seam
  7. Finish applying shingles over sides and upper portion of the (EMC) flashing

Note: Properly installed the lower approximately 1/3” (8.4mm) of the (EMC) base will be on the top of the shingles and the upper approximately 2/3; (16.9mm) of the (EMC) base will be covered by the shingles

Electrical Mast Connection

Pipe Size / Flashing DetailsCompoundPart No.
Size 0” – 5-3/8” (0 – 136mm) • Base dimensions 15” (381mm)Black EPDMEMC

10 per carton

Master Flash®

Written by novagiant on . Posted in Master Flash.

  • Engineered for profiled metal roofs
  • The base is designed to form a seal on any metal panel configuration and roof pitch
  • Cut opening 20% smaller than the pipe outside diameter (OD) to get a
    compression seal.
  • Compounded specifically for maximum resistance to weathering due to ozone
    and ultraviolet light
  • Master Flash is easily customized with a sharp knife
  • EPDM/SILICONE
Product No.Pipe SizeBase SizeCtn. Qty.Ctn Wt.
Mini1/8’’-3/4’’2-1/4″301
#11/4’’-2-3/4’’4-1/4″153
#27/8’’-4’’6″155
#31/4’’-5-3/4’’8″158
#42-3/4’’-7’’10″108
#54’’-8-1/4’’11″1011
#64-3/4’’-10’’12″1014
#75-1/2’’-11-1/2’’14″1018
#86-3/4’’-13-1/2’’17″514
#99-1/2’’-20-1/2’’25″524
MAXI12”-28-1/2’’34″545

Sizing Chart For Master Flash®

Check diameter of pipe. Select the appropriate Master Flash® for pipe or duct diameter. For extreme pitch or surface irregularity select next larger size.

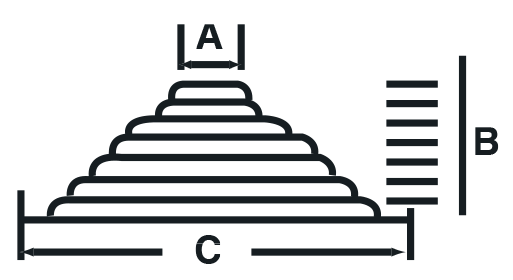

Product No.Designate Pipe SizeCompoundA Top Opening DiameterB Cut to suit pipe sizeC Base Dimensions
Mini1/8’’-3/4’’
(3mm to 19mm)		EPDM SiliconeCLOSED1/8’’-3/4’’2-1/4’’
#11/4’’- 2-3/4’’
(6mm to 70mm)		EPDM SiliconeCLOSED 1/4’’-2-3/4’’ 4-1/2’’
#27/8’’-4’’
(22mm to 101mm)		EPDM Silicone7/8’’7/8’’-4’’6’’
#31/4’’-5-3/4’’
(6mm to 146mm)		EPDM SiliconeCLOSED1/4’’-5-3/4’’8’’
#42-3/4’’-7’’
(76mm to 177mm)		EPDM Silicone2-3/4’’2-3/4’’-7’’10’’
#54’’-8-1/4’’
(101mm to 209mm)		EPDM Silicone4’’4’’-8-1/4’’11’’
#64-3/4’’-10’’
(121mm to 254mm)		EPDM Silicone4-3/4’’ 4-3/4’’-10’’12’’
#75-1/2’’-11-1/2’’
(140mm to 292mm)		EPDM Silicone5-1/2’’5-1/2’’-11-1/2’’14’’
#86-3/4’’-13-1/2’’
(171mm to 343mm)		EPDM Silicone6-3/4’’6-3/4’’-13-1/2’’17’’
#99-1/2’’-20-1/2’’
(254mm to 520mm)		EPDM Silicone9-1/2’’9-1/2’’-20-1/2’’25’’
MAXI12’’-28-1/2’’
(304mm to 724mm)		EPDM Silicone12’’12’’-28-1/2’’34’’
Advanced Ozone Resistance tested to:EPDM
70 hour @ 500 pphm		SILICONE
70 hour @ 500 pphm
High Temperature Resistance tested to:Intermittent: +135°C (+275°F)
Continuous: +100°C (+212°F)		Intermittent: +260°C (+500°F)
Continuous: +225°C (+437°F)
Low Temperature Resistance tested to:-55°C (-67°F) -74°C (-100°F)
Tensile Strength minimum…10 MPa (1450 psi)5 MPa (700 psi)
Compression Set minimum…25%50%

– SWIPE LEFT TO SEE FULL TABLE –

Master Flash® is a registered trademark of Aztec Washer.

Residential Master Flash®

Written by novagiant on . Posted in Master Flash.

  • For shingle roof application
  • Built in 20º pitch allows adaptability to almost any roof pitch including 45º
  • Clearly marked designation of pipe diameter takes the guess work out of sizing
  • Environmentally safe lead free aluminum base.
Product No.Pipe SizeBase SizeCompoundCtn. Qty
Mini Res1/4’’-3’’14’’x18’’Black EPDM10
Mini-S1/4’’-3’’14’’x18’’Red Silicone10
Res #13’’-8’’20’’x24’’Black EPDM10
Res #1-S3’’-8’’20’’x24’’Red Silicone10
Res #28’’-11’’26’’x30’’Black EPDM10
Res #2-S8’’-11’’26’’x30’’Red Silicone10
Res #311’’-18’’35’’x35’’Black EPDM5
Res #3-S11’’-18’’35’’x35’’Red Silicone5
Advanced Ozone Resistance tested to:EPDM
70 hour @ 500 pphm		SILICONE
70 hour @ 500 pphm
High Temperature Resistance tested to:Intermittent: +135°C (+275°F)
Continuous: +100°C (+212°F)		Intermittent: +260°C (+500°F)
Continuous: +225°C (+437°F)
Low Temperature Resistance tested to:-55°C (-67°F) -74°C (-100°F)
Tensile Strength minimum…10 MPa (1450 psi)5 MPa (700 psi)
Compression Set minimum…25%50%

– SWIPE LEFT TO SEE FULL TABLE –

Master Flash® is a registered trademark of Aztec Washer.
